Diagnostic cartridges for POC virus detection

Vaccination against SARS-CoV-2 viruses and widespread testing of infections are the only ways to recover from the Corona crisis and reclaim our normal lives. Vaccination and testing are best carried out in a supplemental mode and will probably be with us for some time.

Providing large enough test capacities is a major challenge. Large central labs can perform multiple tests in parallel very efficiently and cost-effectively. However, the whole testing process is logistically complex and takes a relatively long time (24-48 h). In the meantime, maybe other people have been infected. Or at the time the test was taken, the virus concentration was still too low for detection, but in the meantime the infection has become contagious. Until the result of the next periodic test is available, many additional people may have become infected.

Decentralized point-of-care (POC) testing at patient sites can provide test results under one hour, minimizing further spread of COVID-19. Antigen tests have a relatively simple layout of the fluidics, containing reagents to detect the virus and indicate the result via a color change at a specific position. However, the sensitivity of the antigen tests is limited, so that an early stage of infection with little virus concentration is not discovered reliably.
A better choice are fast tests that use the PCR method to amplify the viruses before analysis. They provide better sensitivity similar to the tests in central labs. The PCR fast tests require a more complex fluidic layout in the test cartridge and also a hardware unit, in which the test cartridge is placed for amplification and analysis.

The cartridges for POC tests are based on plastic containing the reagents for the analysis. Traditional joining methods for the plastic parts such as gluing, thermo-bonding or ultrasonic welding are unsuitable due to the risk of contamination, insufficient precision or too low speed. In comparison, laser welding of plastics offers clear advantages and is very well suited as a joining method for diagnostic test cartridges.

Turnkey S and Modula modules for integration are uniquely positioned to produce the full spectrum from simple test strips (lateral flow assays) to complex micro/macrofluidic cartridges reliably, quickly, precisely, and at a fraction of  costs of the previously applied technologies.


Turnkey S and Modula offer

VirusIcon2 compact quickly ready-to-use solution

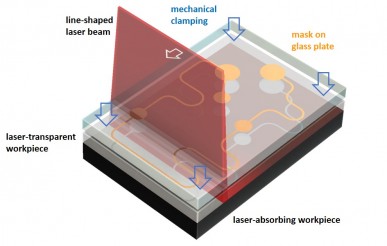

VirusIcon2 different configuration choices for contour or mask welding

VirusIcon2 welding area of 150x100 mm covering the vast majority of cartridge ranges

VirusIcon2 high precision across small densely packed fluid cartridge channels to larger layouts

VirusIcon2 rotary table as option to increase productivity (Turnkey S)

VirusIcon2 small footprint minimizing production space

VirusIcon2 integration option into highly optimized special machine (Modula)

VirusIcon2 Modula Assembly Inline very easily integrated in conveyer system or large rotary table

… ensuring

VirusIcon2 no contamination by adhesive or ultrasonic welding particles

VirusIcon2 no heat impact and vibrations on reagents

VirusIcon2 continuous uniform weld seam quality

... with unprecedented returns on investment

VirusIcon2 10x to 20x faster processing than traditional technologies (gluing, thermo-bonding)

VirusIcon2 low maintenance capex of air-cooled laser system compared to older generation with water cooling

VirusIcon2 cost savings up to 80% compared to traditionally applied technologies
