Laser - central Modula unit

The laser unit is the central module of the Modula product family. Besides the laser, it also contains the control unit, interfaces and operating elements.

The welding process can be set up and observed via the touch screen. Optionally, keyboard and mouse can be connected to the USB ports on the front panel. As a further option, an HDMI connection on the back of the laser unit allows connection of a larger screen.

The connections, cables and fiber feedthroughs to other Modula components are located on the back of the laser unit. Also the interfaces for integration are located on the backside: a parallel connector for digital and analog inputs and outputs as well as an Ethernet RJ45 connector for local area network (LAN) or remote connection for maintenance or trouble-shooting via the Internet.

The safety interfaces are also located on the rear: a two-channel interlock and a connection for an additional emergency stop. Optionally, a warning lamp for laser enabled can also be connected.

Technical data

Laser power 40 - 200 W
Wavelength laser about 980 nm
Laser class  4 (red pilote laser 2)
Air cooling Protection class IP20 or IP30
(optionally filter mat)
Ambient temperature 35/40 °C - depending on laser power and type air cooling
Electrical supply 100-240 V, 50/60 Hz, <10 A
Network Ethernet RJ45 on backside
Dimensions 520 x 430/530 x 215 mm
depth depending on configuration

Links Technology

Photos Laser Unit

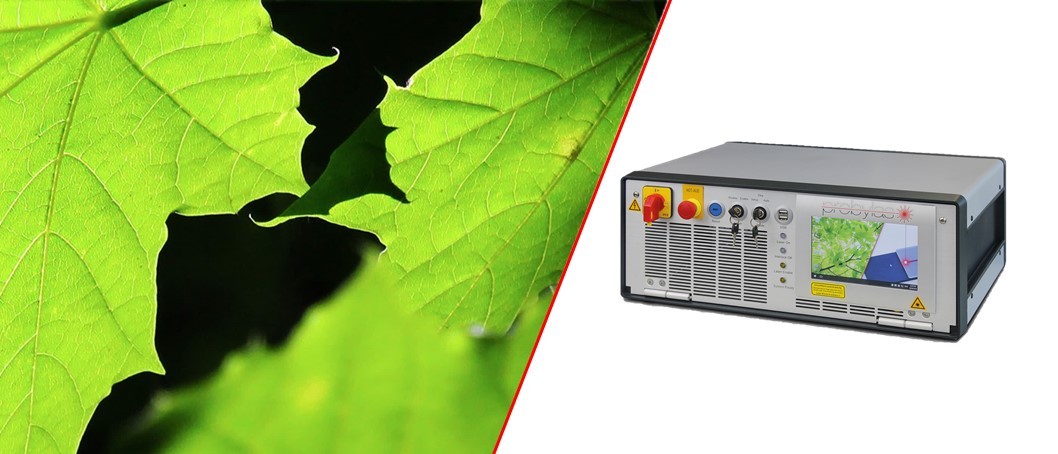

LaserIP30 front reducedModula laser unit with IP30 air vent slots

LaserIP20 front reducedModula laser unit with IP20 air vent slots

LaserIP30tilted front reducedModula laser unit with pivoting legs

LaserIP30 back reducedBackside of Modula laser unit with connection for integration and air vent slots IP30
