Turnkey M - Workstation for larger parts

The Turnkey M as the bigger ready-to-use machine is suited for larger parts up to half a meter in size. It is designed as a workstation that can be operated both standing and seated.

The laser and the control system are located in the lower section of the machine, so that the welding area with clamping unit, motion system and optics can be optimally accessed in the upper section. For setting the welding area is reached by the large side doors or the door in the back, which are all safety monitored. For welding only the large lifting door in front is opened. The electrical control cabinet in the lower section of the machine is accessible by two wing doors at the backside.

The touch-screen monitor on the front of the machine can be tilted depending on the size of the operator. On the USB ports additional optional peripherals like keyboard and mouse can be connected or a memory stick. To connect to a local area network an Ethernet connector is located on the backside of the Turnkey M.

The Turnkey M is available with drawer and a two-porisiton rotary indexing table. By customer-specific modification also the integration to a transfer system with work-piece carrier is possible.

Technical data

Welding area axes 500 x 400 mm, scanner 350 x 350 mm
Laser power 40-200 W
Wavelength laser about 980 nm
Laser class 1 (red pilot laser 2)
Clamping force up to 7'000 N
Clamping stroke 20 mm - extendable on request
Drawer manual, pneumatic, or electrical
Diameter rotary table 650 mm
Lifting door 650 x 400 mm - pneumatic or electrical
Cooling air (IP20 with filter mat)
Ambient temperature 35/40 °C depending on laser power and duty cycle
Electrical supply 100-240 V, 50/60 Hz, <10 A
Compressed air supply 6-8 bar, free of oil
Dimensions 880 x 1'200 x 1'950 mm for drawer,
880 x 1'250 x 1'950 mm for rotary table,
with lamp tower 2'170 mm high
Weight about 300 kg depending on configuration

TurnkeyM axessystem  TurnkeyM side drawer

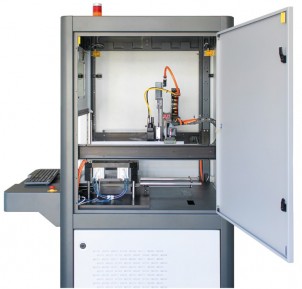

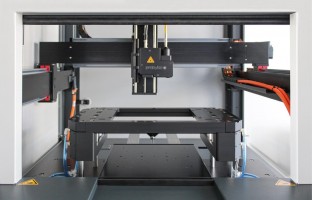

Clamping unit and axes system for large welding area inside Turnkey M.

TurnkeyM scan  TurnkeyM side rotary

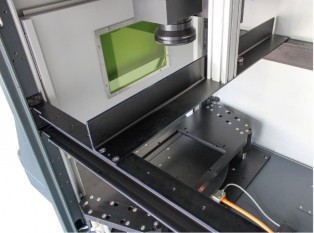

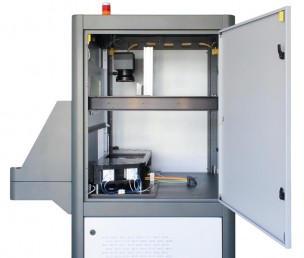

Scanner optics above rotary indexing table for quasi-simultaneous welding.

TurnkeyM rotaryplate  TurnkeyM USB

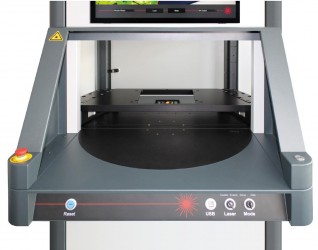

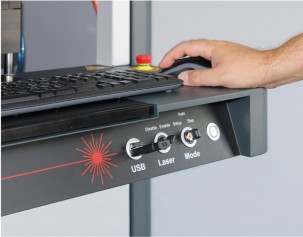

Operation controls of Turnkey M and USB ports for optional peripherals like keyboard and mouse or for data transfer by memory stick.

Turnkey M 1
Turnkey M with drawer for parts.

Turnkey M 2

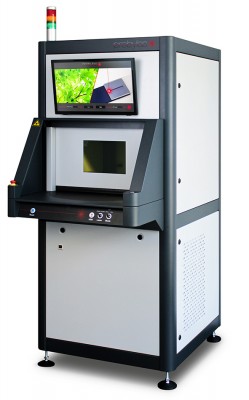

Turnkey M with rotary table for parts.

TurnkeyM backside
Electrical control cabinet and connections on backside of Turnkey M.
