Turnkey S - versatile & compact

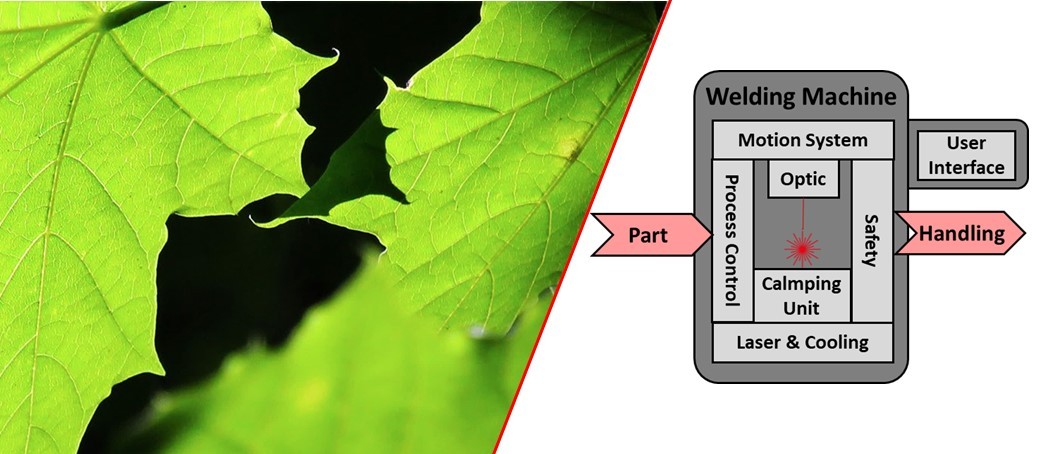

The Turnkey S is the small Turnkey machine that can be placed on a normal table. Despite its compact design, it is modular and can be equipped with various Modula components for all welding processes.

For welding the small lifting door is opened. The front cover of the machine can be opened for setup and maintenance. All components are easily accessible. The drawer for the components and the lifting door can be operated manually, pneumatically or electrically. The clamping unit can be selected between pneumatic and electric. The rotary indexing table is available in manual and electrical versions.

Control unit, laser and air cooling are located in the electrical cabinet on the rear side. No separate laser unit is necessary. The welding process can be set up and observed on the touch screen. It is also possible to connect a larger screen via the HDMI plug on the rear side. Also keyboard and mouse can be connected at the USB ports next to the touch screen.

The USB ports can also be used to load and save welding programs and process data. On the rear side is an Ethernet port to connect the Turnkey S to a local are network (LAN) or to build-up a secure connection via Internet for remote maintenance.

Technical data

Welding area axes 150 x 100 mm, scanner 100 x 100 mm
Laser power 40-200 W
Wavelength laser about 980 nm
Laser class 1 (red pilot laser 2)
Clamping force 2'300 N - pneumatic or electrical
Clamping stroke 20 mm - extendable on request
Drawer manual, pneumatic, or electrical
Diameter rotary table 300 mm
Lifting door 300 x 140 mm - manual, pneumatic, or electrical
Cooling air (IP20 with filter mat)
Ambient temperature 35/40 °C depending on laser power and duty cycle
Electrical supply 100-240 V, 50/60 Hz, <10 A
Compressed air supply 6-8 bar, free of oil
Dimensions 520 x 700 x 565 mm (with lamp tower 780 mm)
Weight 60-75 kg depending on configuration



Contour process with servo-axes in Turnkey S



Fast contour process with scanner in Turnkey S

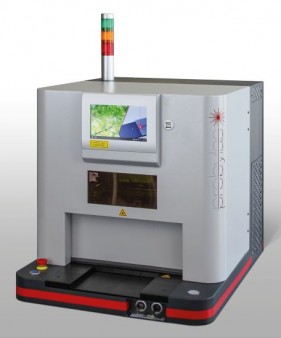

TurnkeySclosed drawer axis reduced
Turnkey S with drawer for workpieces

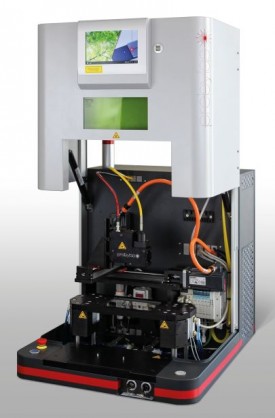

 TurnkeySopen drawer axis reduced
Turnkey S with drawer for workpieces, xy axes system, pneumatic clamping unit, and spot optics with laser power measurement and pyrometer.

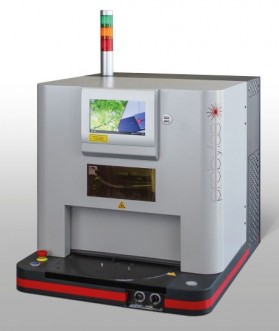

TurnkeySclosed rotary scan reduced
Turnkey S with rotary indexing table for workpieces.

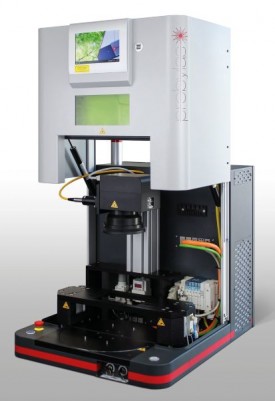

TurnkeySopen rotary scan reducedTurnkey S with rotary indexing table for workpieces, scanner optics, and pneumatic clamping unit.
